Description

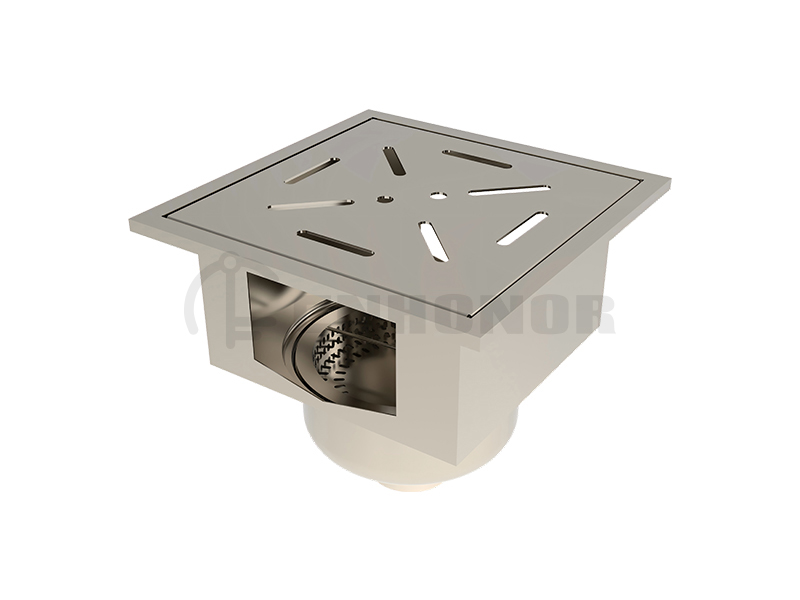

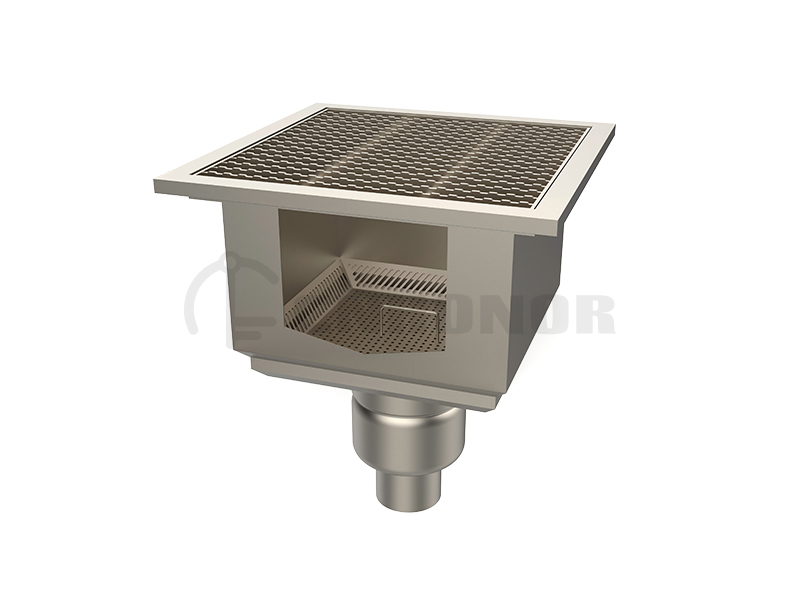

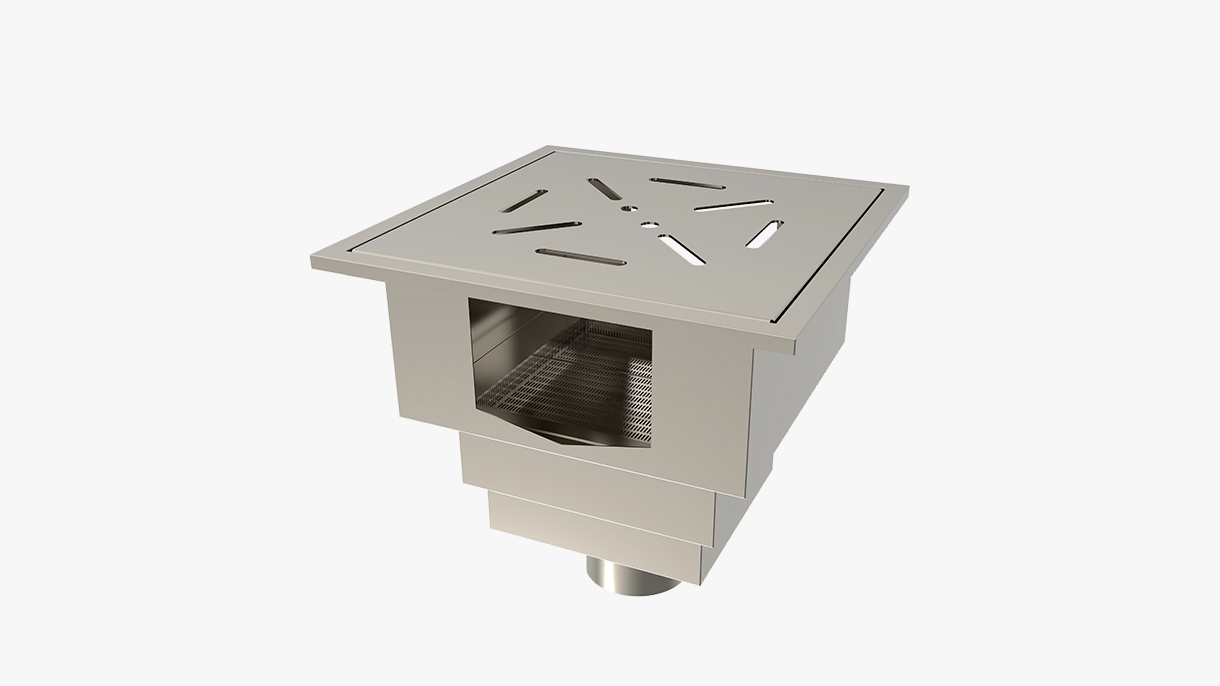

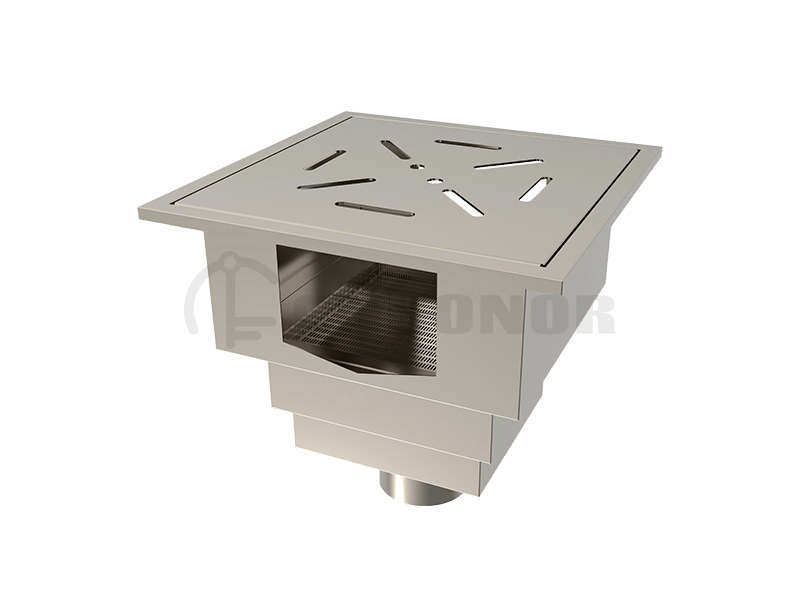

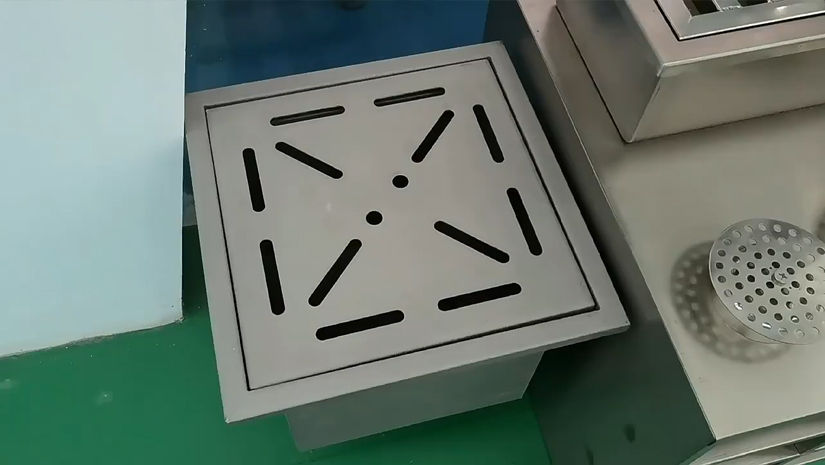

This square floor drain is specifically designed for trench drainage applications and offers excellent practicality and compatibility.
The product is available in multiple specifications, including 350×350, 450×450, and 500×500, with optional flat-bottom and round-bottom designs to accommodate different trench depths and installation requirements. The outlet pipe diameters support DN50, DN75, DN100, and DN150, ensuring compatibility with various piping standards and providing greater installation flexibility.

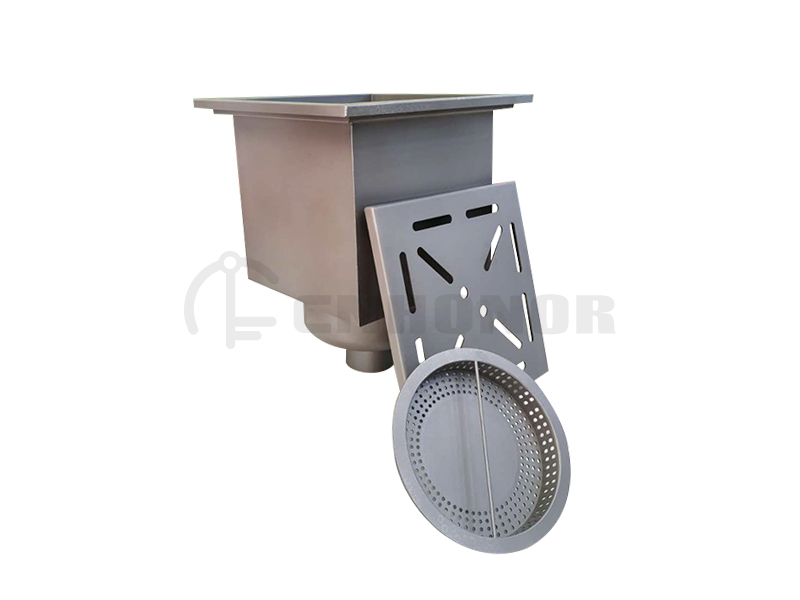

The drain body is constructed from 304 stainless steel, with a main body thickness of 1.5 mm (actual 1.33 mm). The cover plate features a thickness of 3.0 mm (actual 2.66 mm), and the internal strainer is also made from 1.5 mm thick stainless steel.
The outlet pipe diameter is φ50 mm. The overall structure is robust and highly resistant to corrosion and rust, making it suitable for long-term use in high-humidity and frequently washed environments, effectively meeting the operational requirements of trench drainage systems.
Features
High-Quality Material, Superior Durability
All floor drains are made from food-grade 304 stainless steel, providing excellent corrosion resistance, rust prevention, and long service life. Ideal for high-humidity, high-salinity, and frequently cleaned environments.
Efficient Drainage Performance
Hygienic Design, Easy to Clean
Strong Structure, Reliable Load Capacity
Multiple Types for Different Applications
Flexible Specifications and Easy Compatibility
Customizable to Project Requirements
