Description

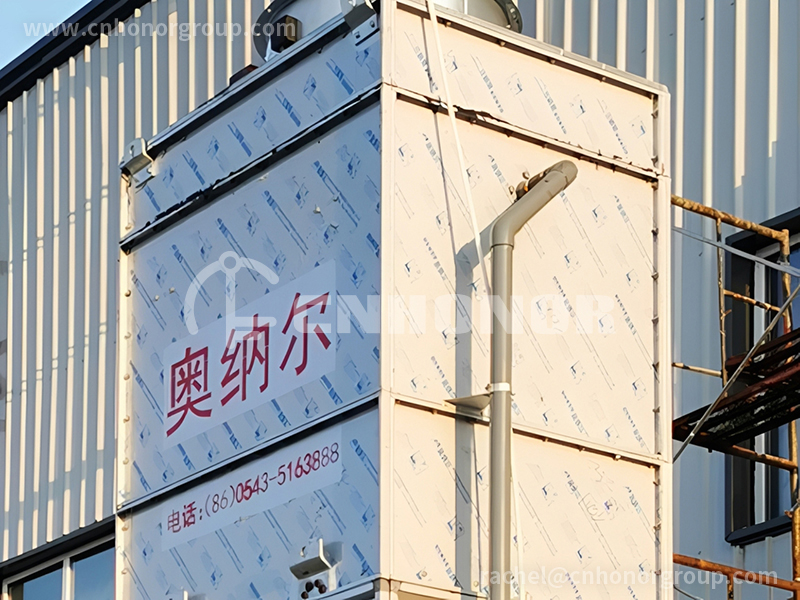

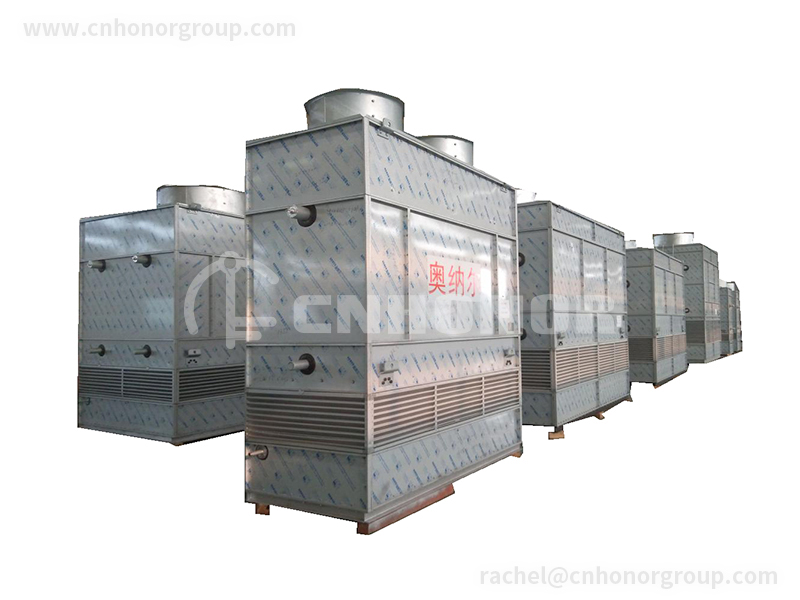

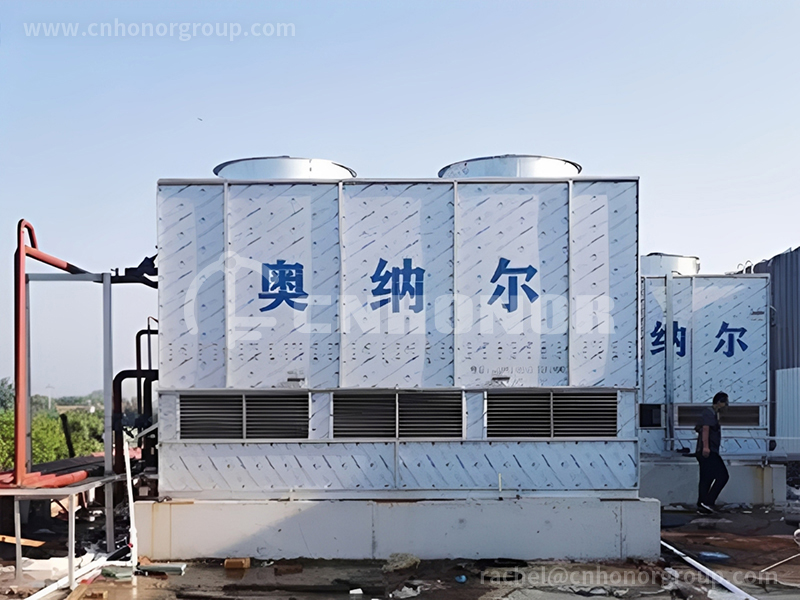

The counter-flow evaporative condenser uses both water and air as cooling media to remove heat from the high-temperature gaseous refrigerant inside the condenser coils, rapidly condensing it into a liquid through direct evaporative cooling and forced-air heat exchange.
The unit incorporates an internal spray water system, elliptical condenser coils, and drift eliminators, supported externally by a circulating water pump, axial-flow fan, and an optional electronic descaling unit for improved long-term reliability.
During operation, hot refrigerant enters from the upper end of the coil bundle. The axial-flow fan creates a stable negative-pressure chamber, allowing spray water to evenly cover the coil surfaces for efficient heat transfer.
As condensation occurs, liquid refrigerant exits from the lower coil outlet. Water and air absorb the released heat; part of the water evaporates and carries away latent heat, with vapor discharged by the fan. The remaining water returns to the sump and is recirculated through the spray system.
Evaporated water is automatically replenished via the sump float valve, ensuring continuous and stable system operation.
Features
Exceptional Thermal Performance
Compact elliptical condenser coils reduce airflow resistance and, under the axial fan’s airflow, deliver high heat-transfer efficiency. The design prevents dry spots and scaling, ensuring stable long-term thermal performance.
Optimized for Transportation & Installation
Enhanced Maintenance Accessibility
Low Operating Cost with Energy Efficiency
Specifications
- Nominal Heat Rejection Capacity230~4580 kW
- Operating Airflow Rate25000~375000 m³/h
- Total Fan Power Input2.2~33 kw
- Spray Water Flow Rate28~466 m³/h
- Total Pump Power Input0.75~11
- Design Make-up Water Requirement1.18~22.96 m³/h
- Coil Volume313.96~6113.98 L
- Pump Power Input0.75~11 kW
- Fan Power Input2.2~33 kW
- Net Weight1350~14500
- Operating Weight2729.7~33377.3
