Description

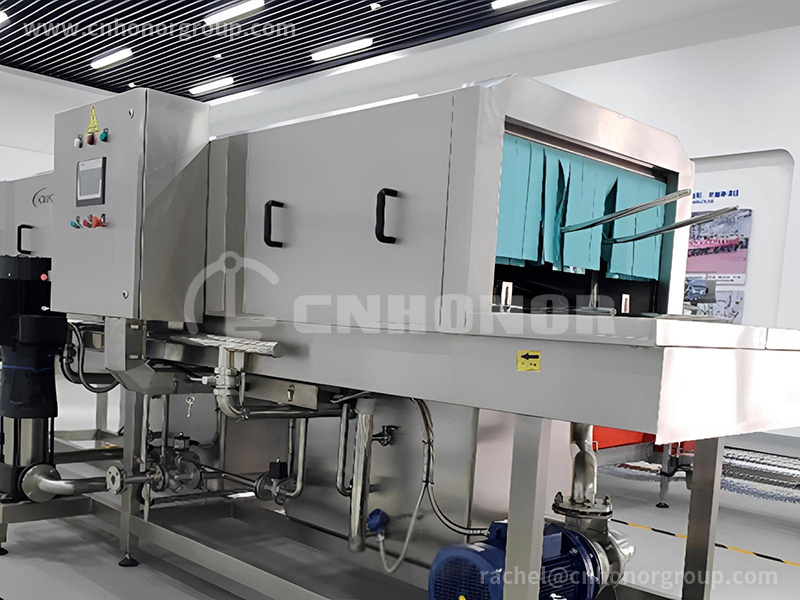

This turnover crate (tray) washing machine is designed for food processing enterprises handling meat, seafood, vegetables, and other products. The machine effectively cleans and sterilizes (optional sterilization available upon special design) turnover crates, replacing traditional manual cleaning processes. Constructed entirely from SUS304 stainless steel, it meets the high-volume cleaning requirements of modern food production facilities. The machine offers reliable performance, smooth operation, simple installation and maintenance, high production efficiency, thorough cleaning, low energy consumption, and long service life.
Features
Intelligent Speed Control (VFD System)
Equipped with a Variable Frequency Drive (VFD), allowing flexible speed adjustment to meet different production capacities and improve operational efficiency.
3D Multi-Directional Cleaning System
Automatic Temperature & Water Control
Stable & Safe Conveying System
Durable & Hygienic Stainless Steel Construction
User-Friendly & Low-Maintenance Design
Specifications
- DriveHollow shaft worm gear reducer, 0.37 kW, VFD.
- Sanitary Pump7.5 + 5.5 kW, 36 and 20 m³/h flow, 28 and 79 meters head.
- Water Consumption0.9 tons per hour (0.2 bar pressure).
- Steam Consumption80 kg/h (inlet water >40°C)
- Workbench HeightAdjustable to 1000 mm
- Crate SizeE2 (600 mm L x 400 mm W x 200 mm H)
- Capacity600/800/1200 crates per hour
- Water SupplyDN25, 2 bar
- Steam SupplyDN25, 3-5 bar
- MaterialSUS304 stainless steel panels, pipes, and nozzles.
