Description

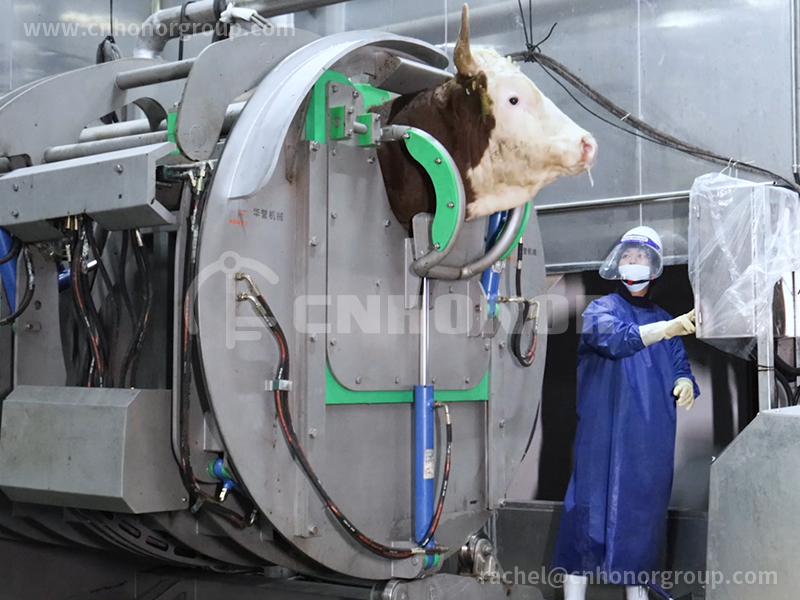

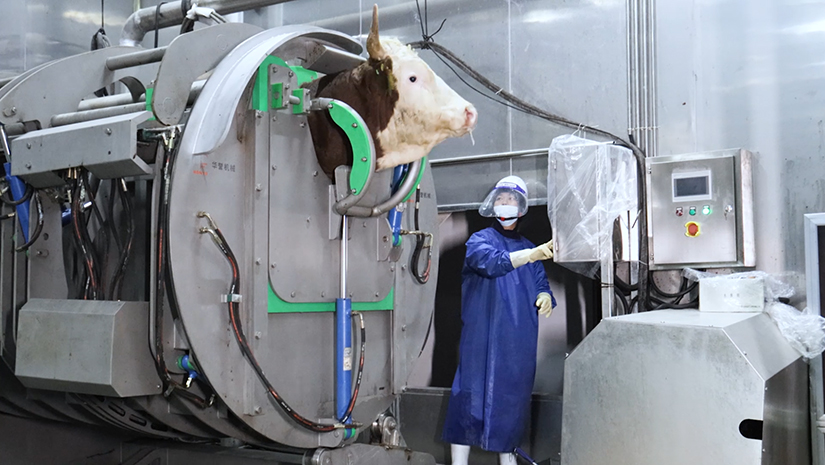

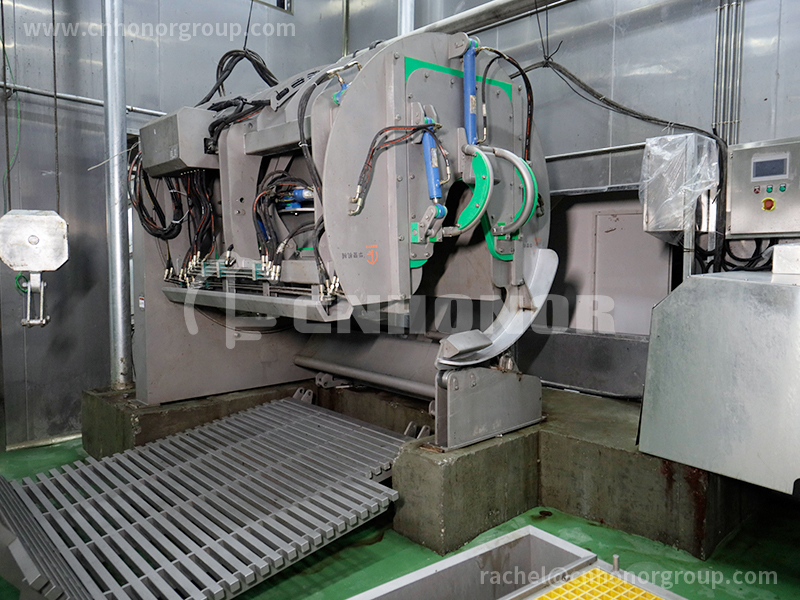

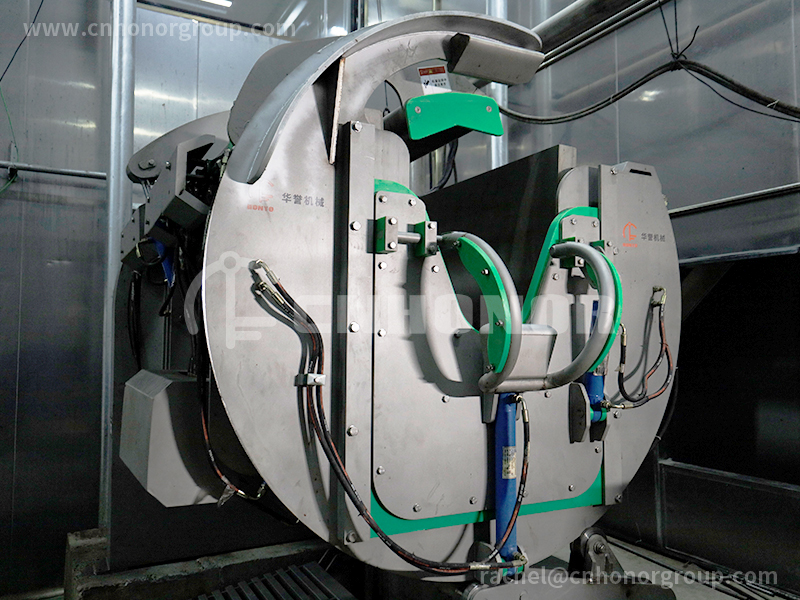

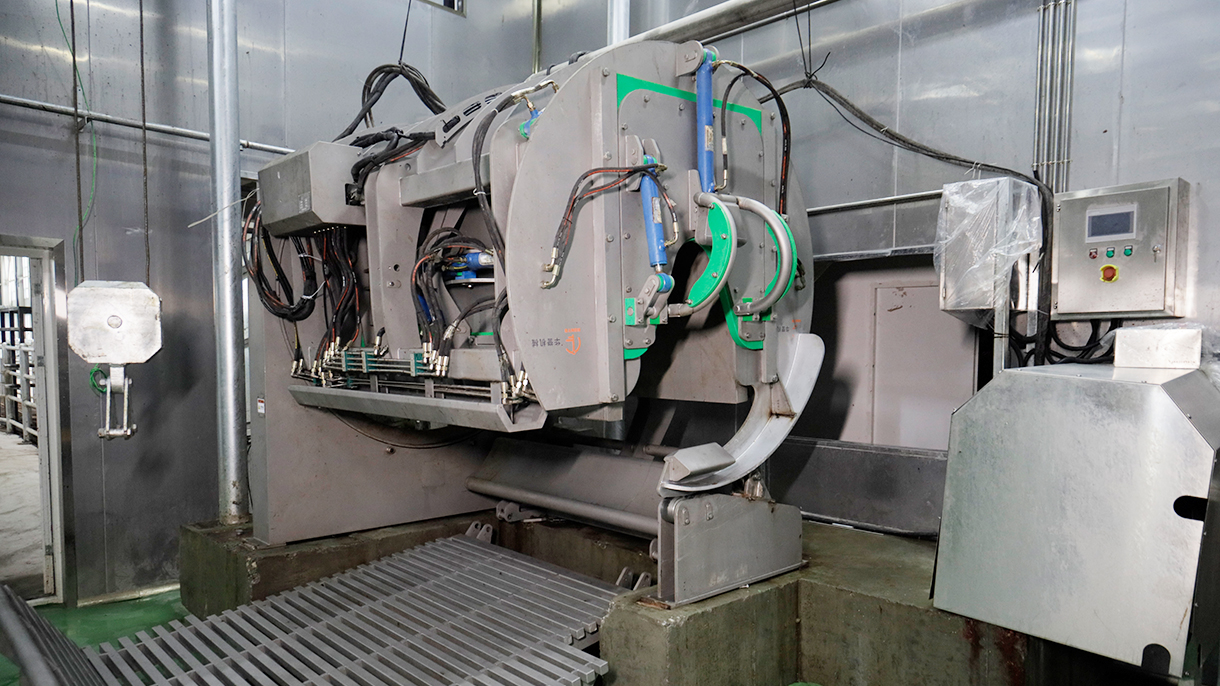

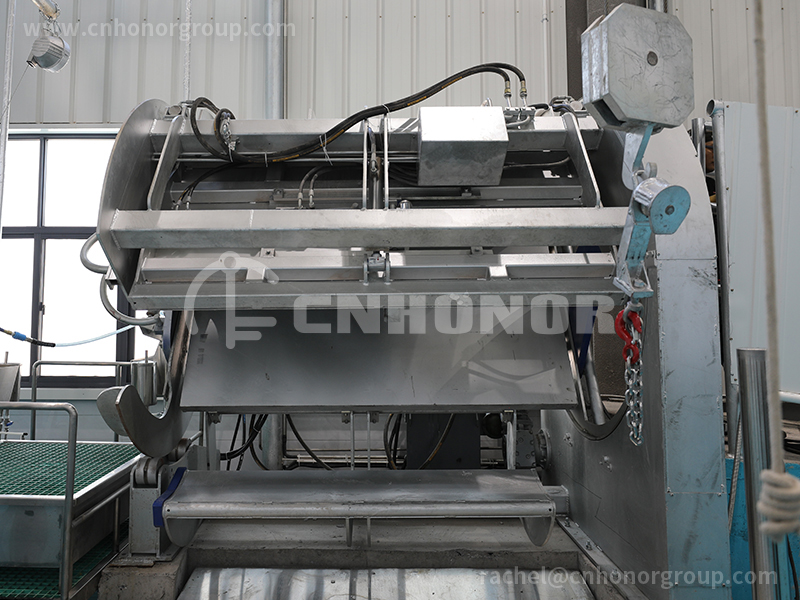

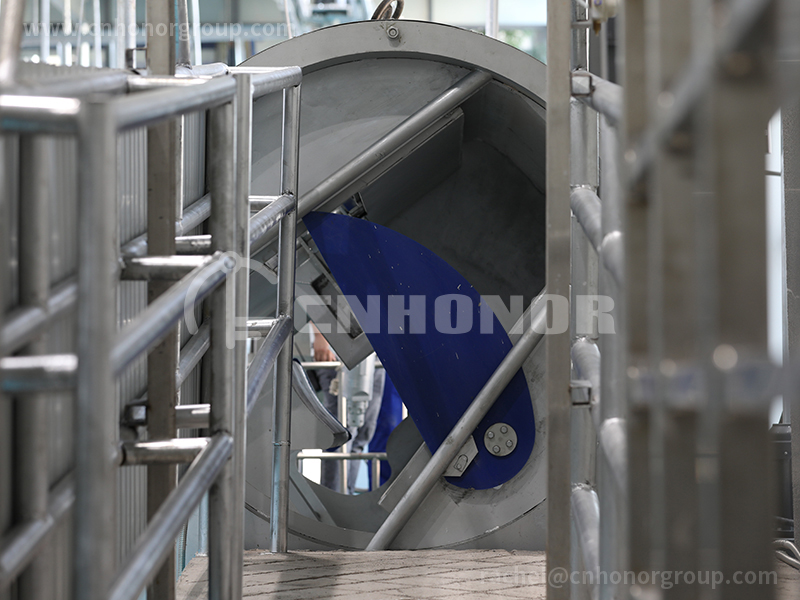

A pneumatic slaughtering box is used in the slaughtering line of a slaughterhouse for beef cattle slaughter. It operates with pneumatic control to immobilize the animal during the slaughter process, ensuring the safe and efficient handling of beef cattle. This equipment is an integral part of the slaughtering line, contributing to the workflow and improving the overall efficiency of the slaughterhouse.
Features
Halal-Compliant Design
Specially designed for Halal cattle slaughter without stunning, fully complying with religious requirements.
Efficient Rotary System
Secure & Humane Restraint
Automated Processing
Stable & Durable Transmission
User-Friendly & Reliable Operation
Specifications
- Hydraulic SystemMax 140 bar; controls animal fixation, bottom plate rotation (0–45°), and side panel lifting.
- Motor & Power7.5 kW, 400V, 3-phase, 50Hz.
- Dimensions3000×2100×2400 mm (L×W×H)
- Weight4000 kg
- Capacity40–50 cattle/hour (Halal), ~60 cattle/hour (Kosher)
- Cattle Weight350–1400 kg
- Entry SizeUpper 1100 mm, lower 600 mm
- ControlPLC with emergency stop
- MaterialsGalvanized steel frame, PA6 plastic parts, heat-treated rotary shaft, hardened gears, stainless steel covers on hydraulic motors
