Description

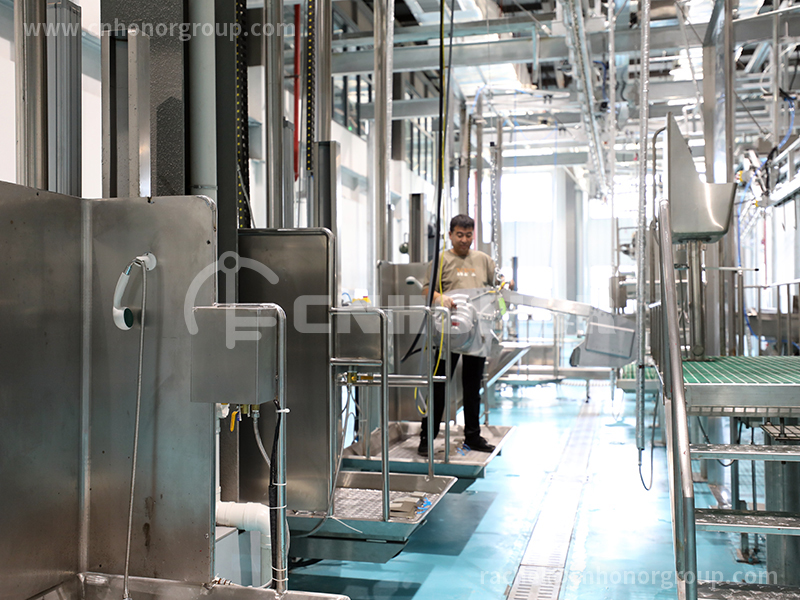

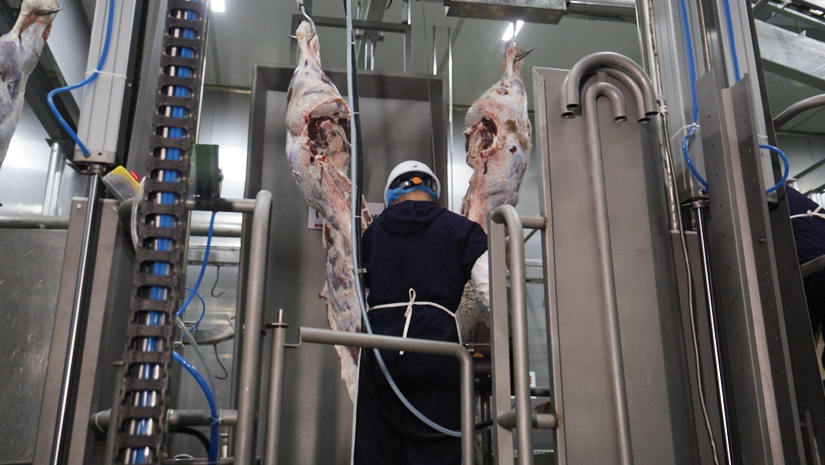

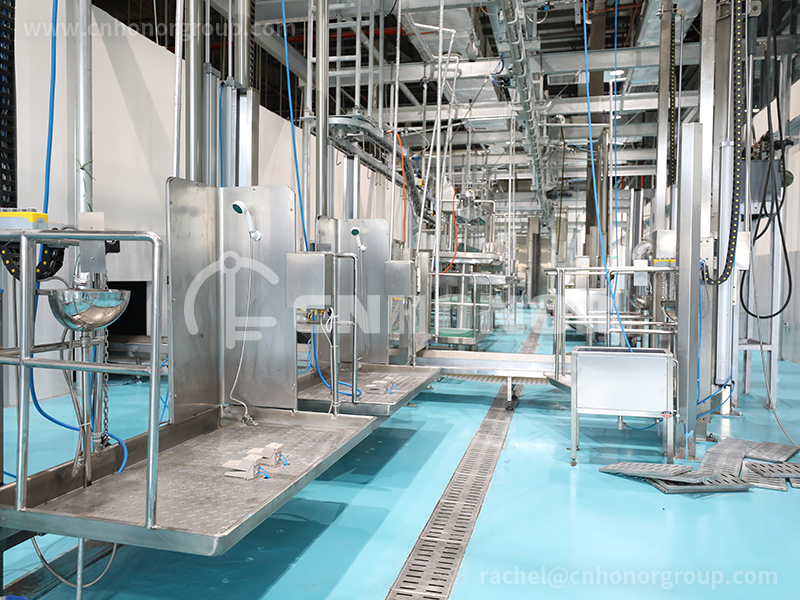

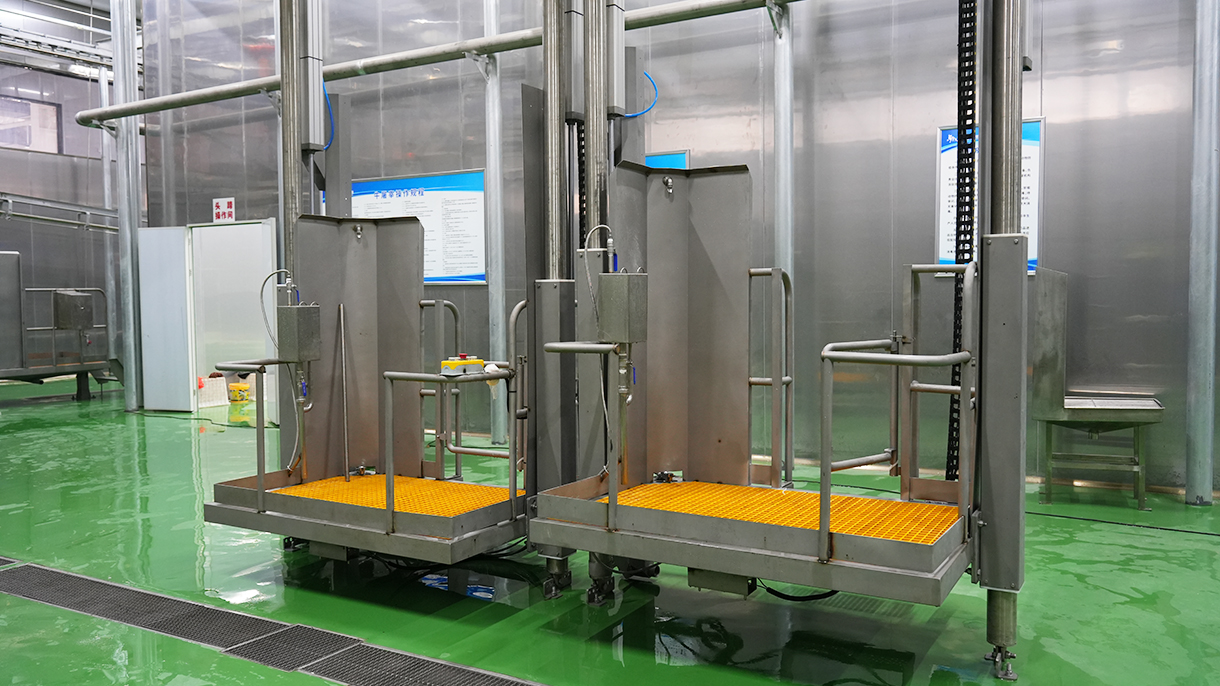

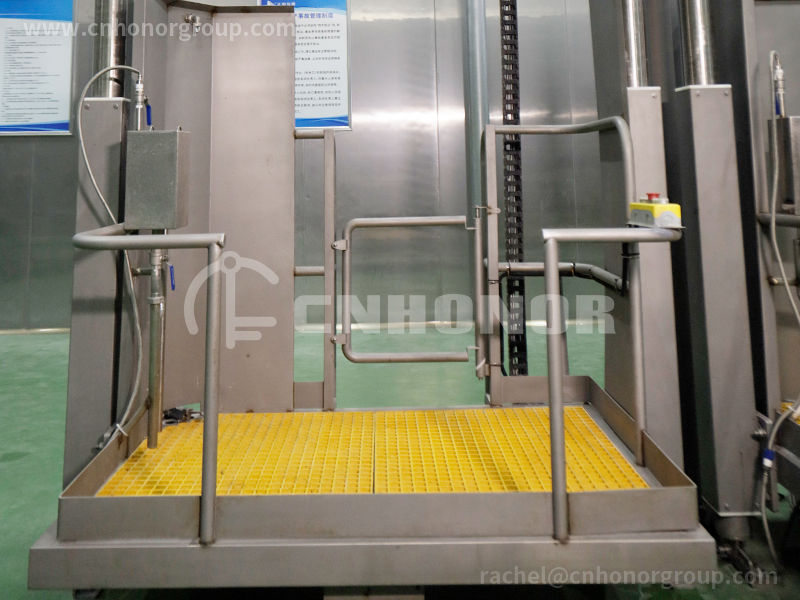

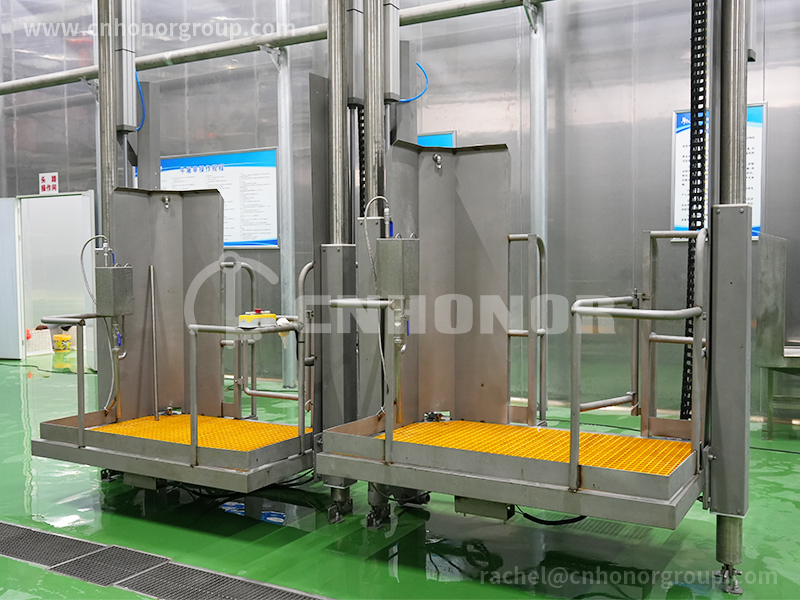

These pneumatic lifting tables are designed for key stages in the cattle slaughter line, including pre-skinning, skinning, offal collection, carcass halving, trimming, and inspection.
They improve efficiency, safety, and hygiene in meat processing plants and slaughterhouses, with smooth height adjustment for optimal ergonomics.
By enhancing workstation automation and ensuring food safety compliance, these tables boost productivity and streamline operations.Constructed entirely of 304 stainless steel for durability and hygiene.
Features
Hygienic & Efficient Platform Design
Platforms feature rounded edges (R-arc) and integrated recessed drainage channels for effective water discharge and easy cleaning.
Anti-Slip Stainless Steel Surface
Smooth Pneumatic Lifting System
Integrated Sterilization System
Complete Cleaning & Water Supply
Reliable & Customizable for Processing Needs
Specifications
- Structure304 stainless steel platform and guardrails
- Platform PlatePatterned stainless steel, 3 mm thick, R-arc edges with recessed drainage
- Frame304 stainless steel square tube 140×4 mm (H1200) + 2 round columns ∮102×4 mm
- Hydraulic/PneumaticJapanese-style single or double cylinders for vertical movement
- Lifting Height400–2000 mm
- Lifting Capacity≥200 kg
- Platform Size1700×1000 mm (standard), 1200×800 mm for skinning table
- SanitationElectrically heated knife & hand sterilizer, apron cleaning device with warm water spray
- Water SupplyHot & cold water via flexible hoses
- Additional FeatureRed or white offal receiving chute for offal tables, slip-resistant platform, smooth operation, easy maintenance
