Description

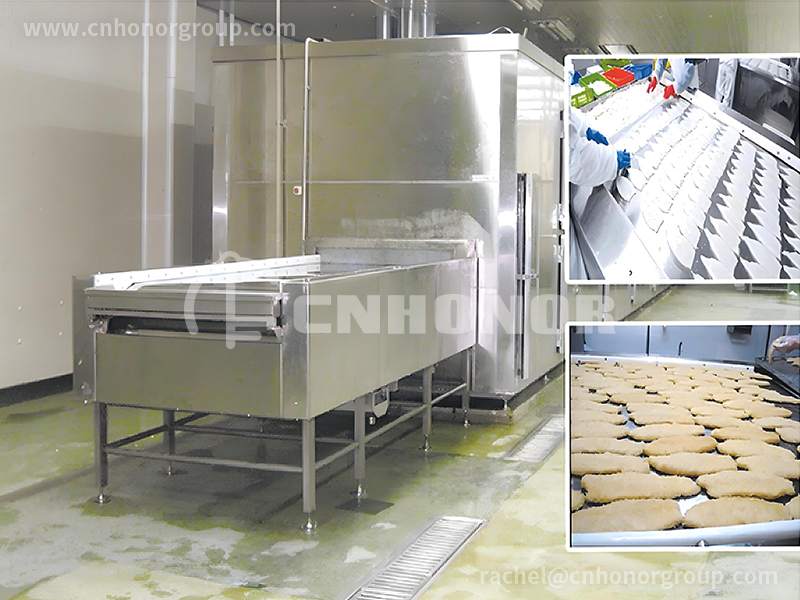

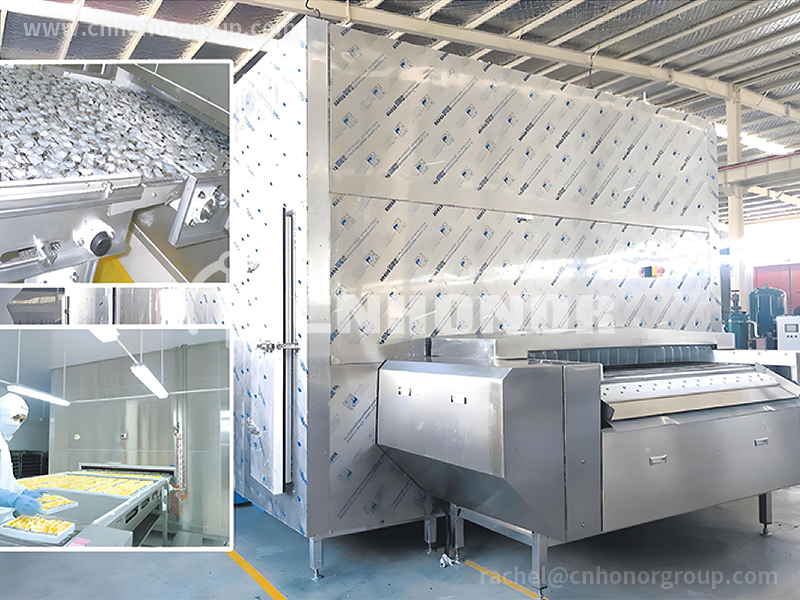

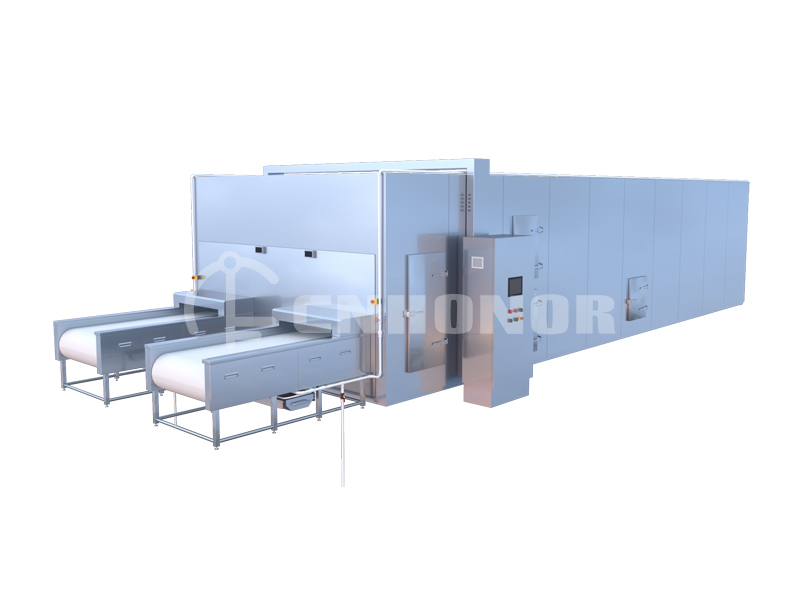

The Tunnel Freezer is available in two main configurations: Plate-Belt Type and Mesh-Belt Type.
The Tunnel Freezer places products on a stainless steel conveyor, while high-speed cold air from top and bottom nozzles rapidly lowers product temperature.
Dual-sided airflow ensures fast, uniform freezing, preserving product quality and minimizing moisture loss. It supports high-capacity industrial production with energy-efficient operation.
Features
Dehydration loss ≤1%
Minimizes weight loss and maintains original taste and juiciness.
Famous brand stainless steel conveyor belt
Wide-fin evaporator with variable spacing
“Bidirectional Airflow Collision” technology
Electrical control components from global brands
PLC automated control system
Specifications
- Cooling Capacity500kg-2000kg
- Cooling MethodHigh-pressure air-jet freezing
- RefrigerantsR-404A / R-507A
- Operating Temperature-35°C
- Infeed & Outfeed Temp+45°C → -18°C
- Voltage220V / 380V (customizable)
- Power27.9 kW
- Belt Width800 – 1800 mm
- Dimensions (L×W×H)11000× 3100 × 3300 mm
- MaterialSUS 304 stainless steel
