Description

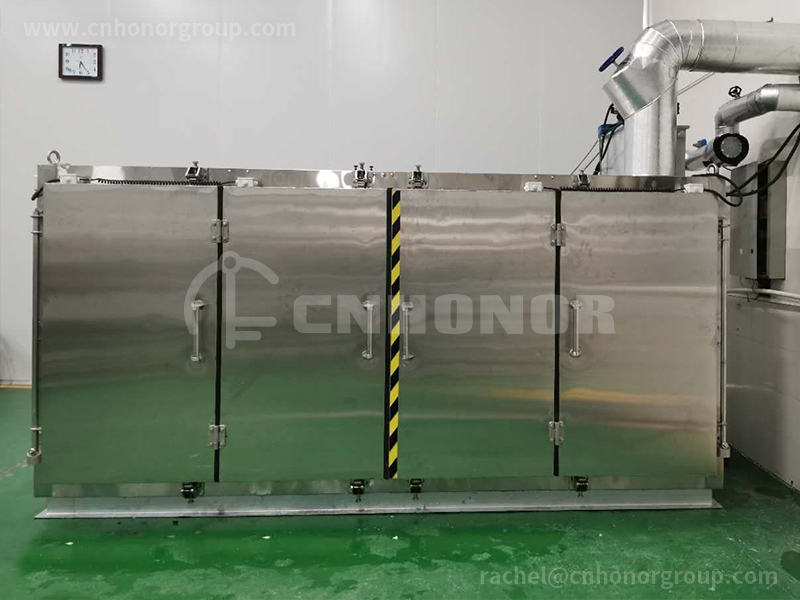

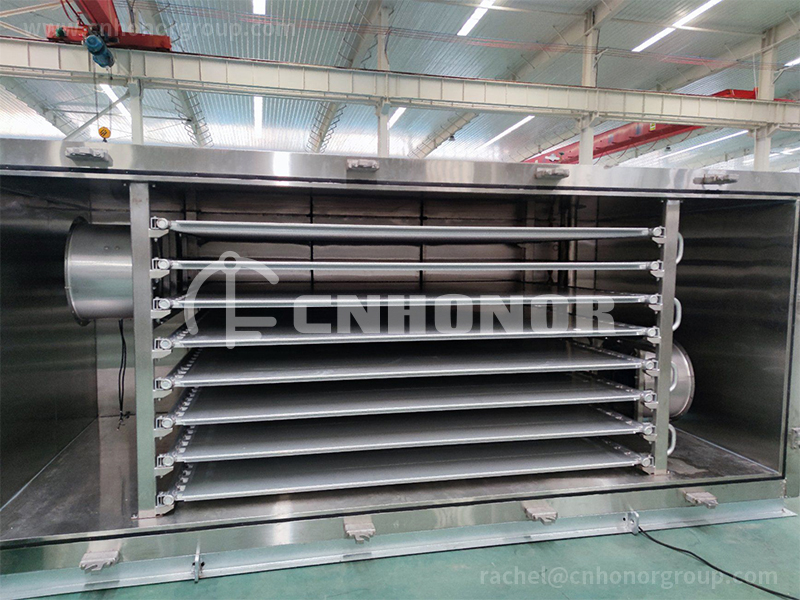

The Shelf-Type Plate Freezer is a versatile and efficient solution designed for freezing a wide range of food products. With its semi-contact freezing system, the machine combines reliable plate cooling with air circulation, ensuring consistent and high-quality freezing results without the need for complex hydraulic systems. Its simple structure and flexible operation make it ideal for small to medium-sized production lines.
Features
Semi-Contact Freezing

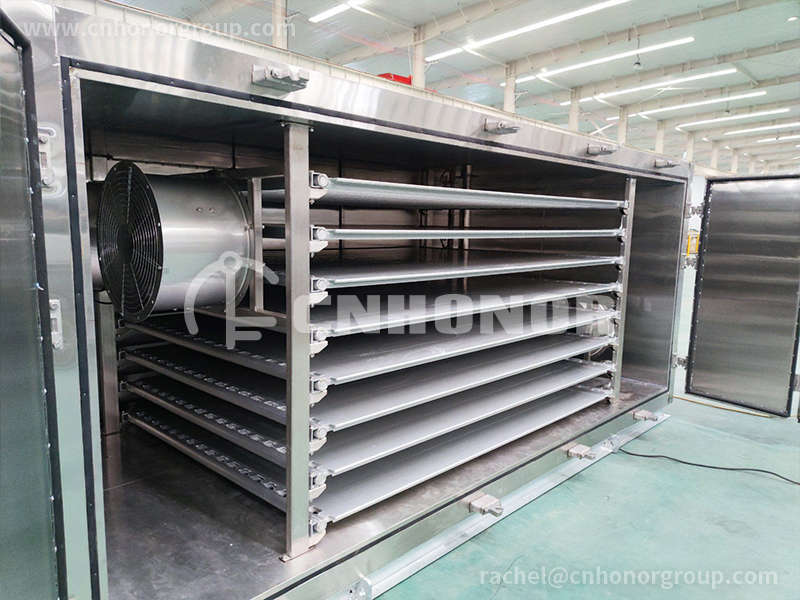

Products freeze efficiently on shelves or trays between cold plates with airflow.
Flexible Handling
Reliable & Low Maintenance
Uniform Freezing
Energy Efficient
Specifications
- Capacity1000– 5000kg/h
- Freezing Time2-4 hours
- Freezing Temperature-35°C to -45°C
- MaterialFull stainless steel chamber and aluminum alloy freezing plates
- Effective Layers9-10 Layers
- Plate Spacing140mm
- Infeed & Outfeed Temperature+15°C → -18°C
- Dimensions3850× 1680 × 2330 (Customized)
- ApplicationFish Fillets, Meat Patties, and Chicken Breasts and etc.
