Description

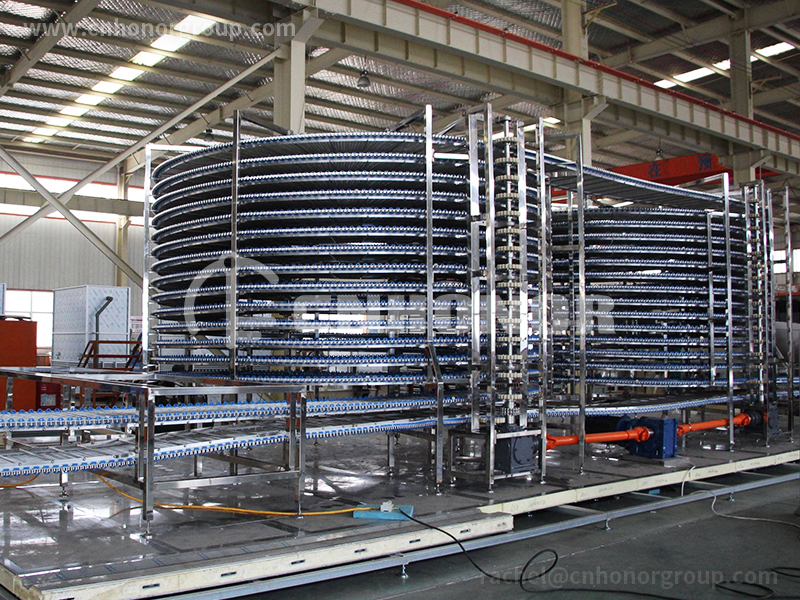

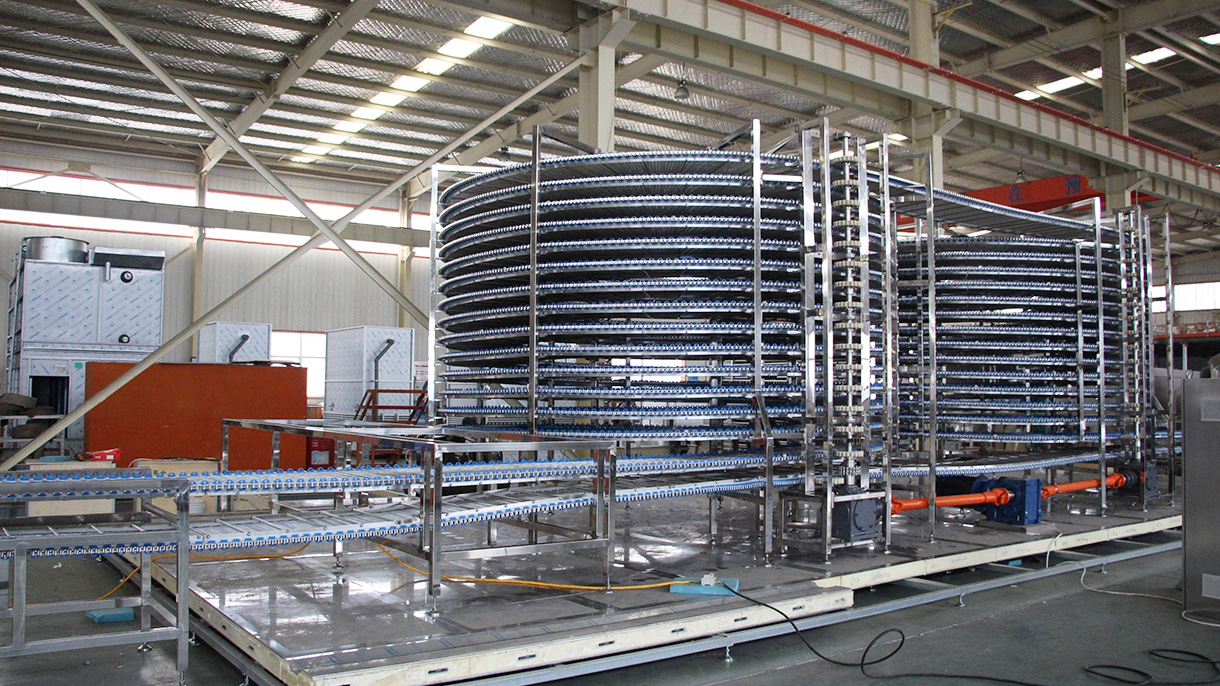

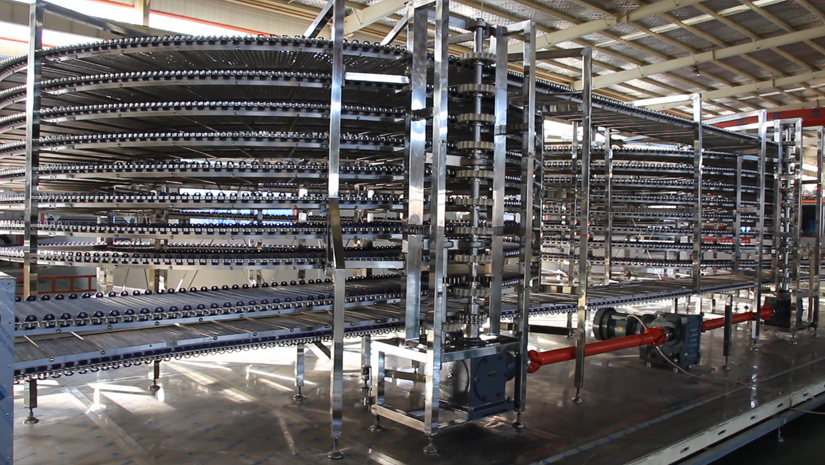

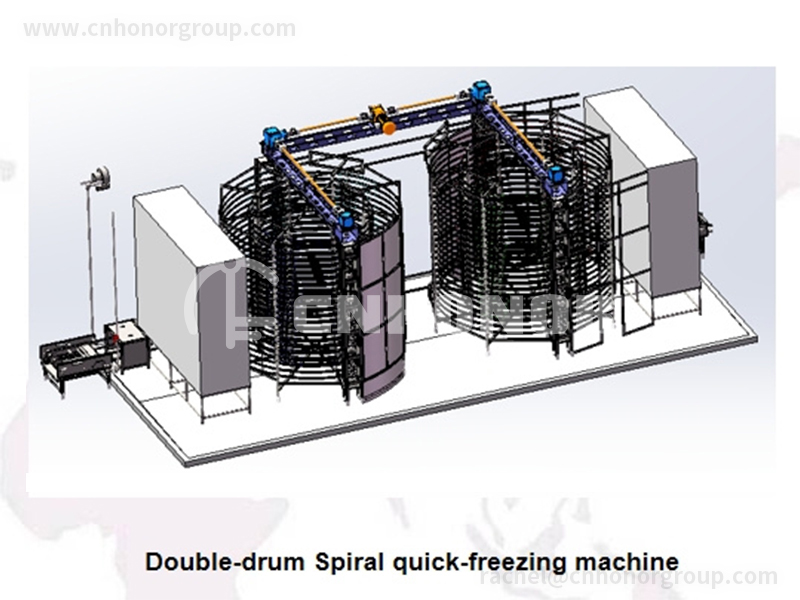

The new-generation Dual Spiral Freezer is a high-capacity IQF freezing system equipped with advanced Side-Drive technology. Its drum-free, tension-free dual-track structure integrates two independent freezing spirals in one cabinet, dramatically increasing throughput while maximizing floor space efficiency.
Compared with traditional single-spiral systems, it delivers nearly double freezing capacity with a similar footprint — ideal for large-scale continuous production. The fully open hygienic design eliminates sanitary dead zones for fast and effective cleaning, while the low-infeed / low-outfeed layout simplifies installation and optimizes production flow.
Features
Dual Spiral High Capacity Space Saving Design
Dual-spiral track design delivers double freezing capacity with maximum space efficiency.

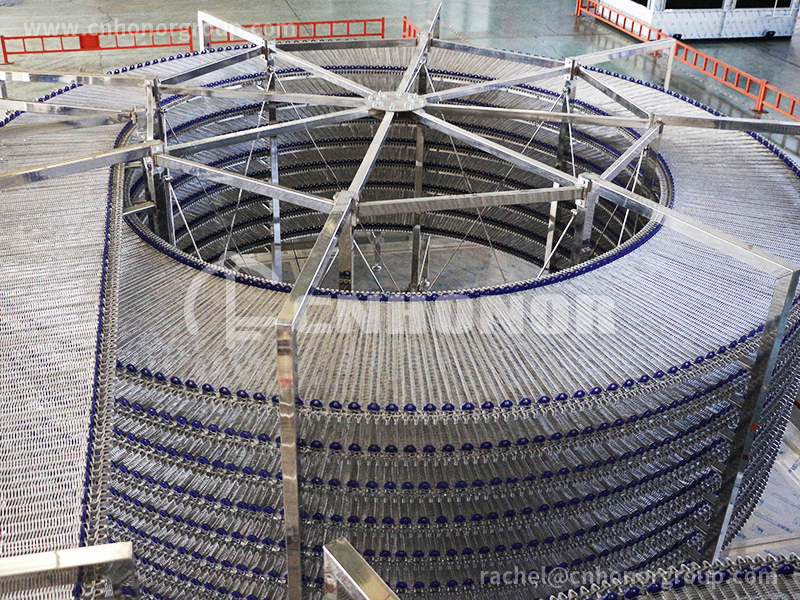

Interlocking Belt Stable Running Long Lifespan
Drum Free Open Structure Easy Cleaning Access
Flexible Layout Multi Direction Custom Design
Tension Free Low Infeed Outfeed Easy Integration
PLC Manual Dual Control Easy Operation
High Efficiency Airflow Fast Uniform Freezing
Specifications
- Capacity1000 –6000 kg/h
- Freezing Time30–90 minutes (adjustable)
- Freezing Temperature-35°C to -45°C
- MaterialFull stainless steel SUS304
- Control SystemPLC + Touch Screen
- Belt Width600 mm / 800 mm / 1000 mm
- Infeed & Outfeed Temp+45°C to -18°C
- Dimensions13500×5500x3600 (Customized)

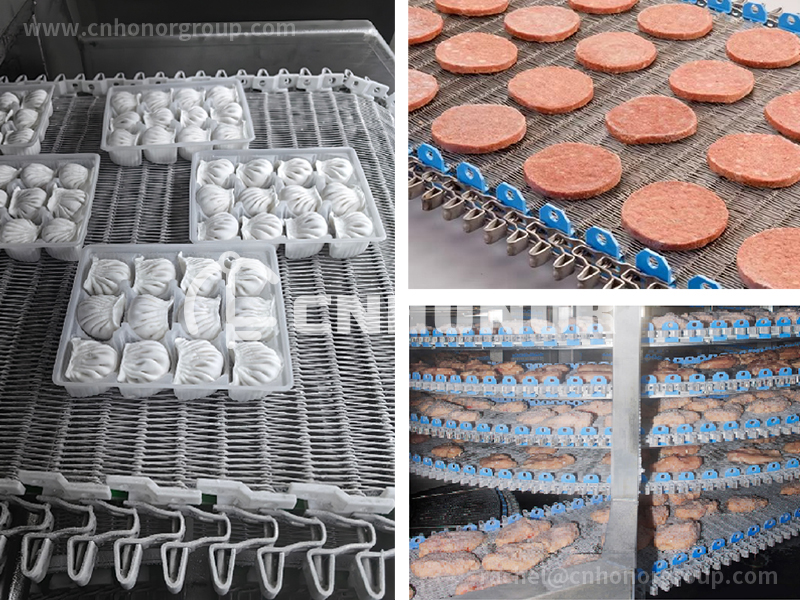

- ApplicationFruits, Vegetables, Meat, Poultry, Seafood, Bakery, Ready Meals
